Your Professional Dotting Machine Supplier

ZheJiang RongYifu Machinery Tech. Co.,Ltd. is located in No.28-2, Qianxi Road, Taozhu Street, Zhuji City, Zhejiang Province.
The company mainly produces and sells single-color dot molding machine, multi-color (2-6 colors) dot molding machine, automatic stocking point plastic molding machine, RYFS-280PS single (double) layer rotary steam setting machine, automatic stocking steam setting machine Equipment. The company's point molding machines are sold well in China and exported to Argentina, Russia, Iran, India, Vietnam, Thailand and other places. In order to adapt to the trend of machine substitutions, the company developed an automatic stocking point molding machine and an automatic stocking steam setting machine in 2015. In 2016, the RYFS-280PS and RYFS-560PS rotary steam setting machines were successfully developed, and the efficiency was increased by 20%.

Why Choose Us

01/

Sales Market
The company's point molding machines are sold well in China and exported to Argentina, Russia, Iran, India, Vietnam, Thailand and other places.

02/

Professional Team
The company has a professional technical team, excellent products and honest sales services.

03/

Advanced Equipment
With the most advanced cutting and cutting machine, machining center, CNC bending machine, CNC lathe and other supporting production equipment.

04/

Our Products
The company mainly produces and sells single-color dot molding machine, multi-color (2-6 colors) dot molding machine, automatic stocking point plastic molding machine, RYFS-280PS single (double) layer rotary steam setting machine, automatic stocking steam setting machine Equipment.

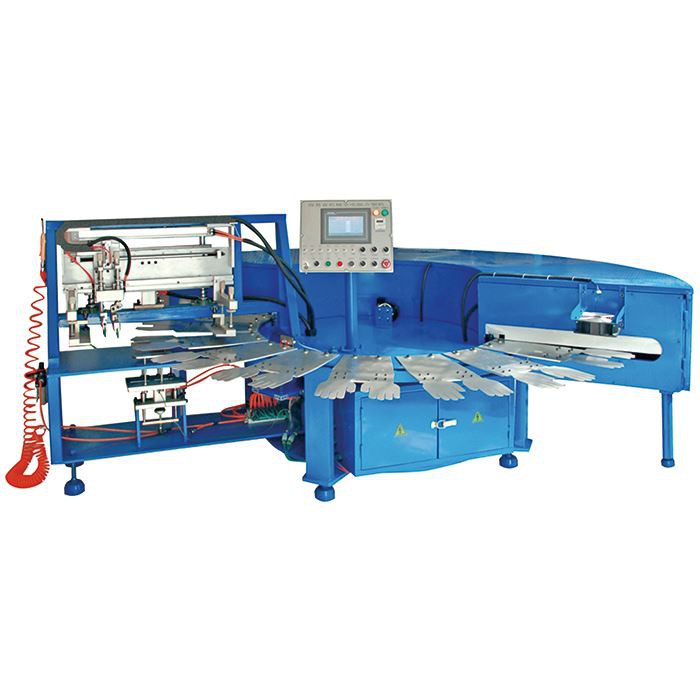

Multicolor Dotting Machine Gloves
The Multicolor Dotting Machine Gloves has been updated many times. The latest version is completely controlled by the computer, so it is very simple and convenient to operate.
view more
Gloves Multicolor Dotting Machine
The Gloves Multicolor Dotting Machine is made of the best material, and the production capacity of this kind of machine is very strong, and the production efficiency is very high.
view more
Slip Gloves Dotting Machine
The working cycle of the Slip Gloves Dotting Machine is almost twice that of the traditional machine, and the fastest can reach 1400 pairs per hour, so the efficiency is very high.
view more
Ink Dotting Machine
The Ink Dotting Machine is a point molding machine for processing socks. After optimization and update, the number of templates has doubled compared with the traditional machine. The production...
view more
Cotton Pvc Dots Gloves Dotting Machine
The Cotton Pvc Dots Gloves Dotting Machine can be used not only to process invisible boat socks, but also to process gloves, which is very practical.
view more
Gloves Ink Dotting Machine
The Gloves Ink Dotting Machine has been updated many times. The latest version is completely controlled by the computer, so it is very simple and convenient to operate.
view more
Gloves Dipping Dotting Machine
The Gloves Dipping Dotting Machine is made of the best material, and the production capacity of this kind of machine is very strong, and the production efficiency is very high.
view more
Dipping Dotting Machine
The working cycle of the Dipping Dotting Machine is almost twice that of the traditional machine, and the fastest can reach 1400 pairs per hour, so the efficiency is very high.
view more

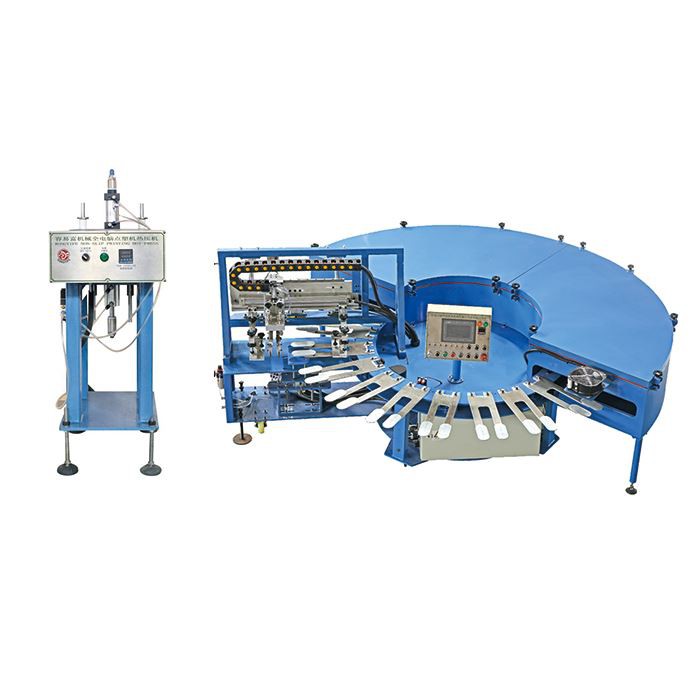

Socks Glue Dotting Machine
The Socks Glue Dotting Machine is a point molding machine for processing socks. After optimization and update, the number of templates has doubled compared with the traditional machine. The...
view more
Socks Ink Dotting Machine
The Socks Ink Dotting Machine can be used not only to process invisible boat socks, but also to process gloves, which is very practical.
view more
Screen Printing Dotting Machine
The Screen Printing Dotting Machine has been updated many times. The latest version is completely controlled by the computer, so it is very simple and convenient to operate.
view more
Gloves Knitting Dotting Machine
The Gloves Knitting Dotting Machine is made of the best material, and the production capacity of this kind of machine is very strong, and the production efficiency is very high.
view more

First 12 3 4 5 Last

Technical Parameters

Model	HS-DP01-R
Standard Marking Area	120mm x 80mm
Optional Marking Areas	150mm x130mm(HS-DP02), 200mm x 150mm(HS-DP03), 300mm x200mm(HS-DP04)
Rotary Device	Can clamp the parts diameter within 100mm and weight within 5kg
Marking Speed	30mm~40mm/s
Impact frequency	300 times/s
Preciseon Repeatability	0.001mm
Marking Depth	0.01mm~0.5mm（depends on your material）
Power Supply	AC 100V ~ 240V 50HZ/60HZ
Air power request	0.2Mpa ~ 0.6Mpa
Humidity	0-90% (Non-condensing)
Temperature	From 0 to 40 Centigrade Degree.
Marked content	All English Characters, All Numbers, Variety of Graphics outline, Logos, Barcodes, Dot Matrix 2D codes, Circle Letters, Serial Numbers, etc.

Specification

Specifications	Controller Based	PC Based
Marking Area (MM)	100100 / 150100 / 8040 / 2020	100100 / 150100 / 8040 / 2020
Standard Column Frame (MM)	200	200
Character Height (MM)	01.00 mm to 99.90 mm with 0.1 mm steps	01.00 mm to 99.90 mm with 0.1 mm steps
Imprinting Power	100 N MAX	100 N MAX
Marking Data	Alphanumeric + symbols + Logo + 2D Codes	Alphanumeric + symbols + Logo + 2D Codes
Barcodes	2D Data matrix code, Version ECC200	2D Data matrix code, Version ECC200
Variable Data Marking	Date Codes, Shift Codes, Serial Number	Date Codes, Shift Codes, Serial Number
Marking Styles	Linear, Angular, Circular, Inverted, Mirror marking	Linear, Angular, Circular, Inverted, Mirror marking
Font Type	4 Standard Fonts	4 Standard Fonts
Deep Marking	up to 0.5 mm	up to 0.5 mm
Memory	100 designs / 200 designs	Infinite* (As available in PC)
Interface (Data input)	RS232	MS Excel
Interface (Data I / O)	2Inputs & 2 Outputs for PLC Interfacing	N/A
Interface (Design Selection)	BCD Inputs – 16 designs / RS232 – 100 designs	N/A
Optional	Output of Barcode Scanner can be marked.	N/A
Optional	Rotary attachment for peripheral marking	N/A
Optional	Traceability Software	Traceability Software
Optional	Foot Switch	Foot Switch
Optional	Name plate holding manual	Name plate holding manual
Optional	Turnkey marking solutions / SPM / Automation	Turnkey marking solutions / SPM / Automation
Power Consumption (W)	120	120
Requirements for Machine Installation	Electrical: 230 V 50 Hz Supply (+06.0%) with live earthing	Electrical: 230 V 50 Hz Supply (+06.0%) with live earthing
–	Compressed dry air supply, up to 6 bar pressure, 10CFM	Compressed dry air supply, up to 6 bar pressure, 10CFM
–	UPS 1.2 kVA with surge protection	UPS 1.2 kVA with surge protection
–	Pneumatic tubing M 8 size	Pneumatic tubing M 8 size

5 Advantages of Dotting Machine

Cost-effectiveness
Dotting machine present an initial low price point compared to other marking methods, making them a cost-effective solution for permanent identification. This affordability makes them an attractive option for manufacturers looking to implement traceability measures without breaking the bank.

Versatility and Precision
Dot peen systems offer versatility in marking various materials, from metals to hard plastics, with precision up to 62 HRC. The electrically driven nature of these machines eliminates the need for an air supply, reducing operational costs and making them a low-cost investment with minimal maintenance requirements.

High-speed marking
Dotting machine operate swiftly, allowing for rapid marking of parts and products. This speed is vital in industries where efficiency and productivity are top priorities. With these machines, manufacturers can streamline their production processes and meet tight deadlines without compromising on quality.
Unlike some other marking methods, Dotting machine create deeper impressions on surfaces. This ensures greater durability and readability of markings, even in harsh environments or after prolonged use. Deeper marking also enhances traceability, making it easier to track and identify products throughout their lifecycle.
Combining high-speed operation with deeper marking capabilities, these offer a reliable solution for a wide range of marking needs. Whether it’s marking serial numbers, logos, or other identifiers, these machines deliver consistent results with precision and efficiency. As manufacturing continues to evolve, Dotting machine remain a valuable asset for businesses seeking to enhance their marking processes.

Ease of use and Maintenance
Benchtop dot peen marking systems are known for their user-friendly design and simple operation. These systems require few consumables and offer high performance with integrated software that streamlines the marking process. Additionally, their robust construction with steel or cast iron components ensures durability and longevity.

Applications across industries
Dotting machine find extensive applications across various industries, including medical equipment, military hardware, aerospace complexes, electronics, and more. Their ability to create precise, low-stress dot patterns makes them indispensable for industries requiring durable and accurate part marking solutions

Features of the Dotting Machine

USB version PC requirements: 1GHz Pentium or equivalent with USB port
USB version compatible operating systems: Windows 7, Windows 8 and Windows 10
The marking machine is powered by a standard 220 volt electric source (110 volt also available)

Marking Area: 100mm x 100mm

Standard Character Sizes: 0.18mm – 9.99mm in increments of 0.18mm

Variable Marking Speed

Marking Formats: 5 x 7, 7 x 9, Varidot and the USB version also offers all windows True Type fonts, DXF, HPGL

Marking Machine weight: 13kg

Memory Capacity: 4000 controller = upto 4000 layouts, USB = Unlimited

Controller Weight (4000 controller): 6.5kg

Controller features an industrial 10.4 inch touchscreen with additional option of connecting an external keyboards.

Maximum of 15 characters for 2D barcodes

The 4000 controller provides connectivity options through RS232 serial and digital I/O ports

Controller Dimensions (LCD): Height = 300, Width = 200, Depth = 280mm

Machine dimensions: Height = 570mm, Width – 250mm, Depth = 295mm

Types of Dotting Machine

Manual punching machines

The manual punch is the most common and simplest type of punch. It usually consists of a lever, a moving bed, a lifting system and a marking tool. The operator lifts or moves the lever to move the marking tool to the target position for marking. Manual type punching machine operation is simple, the price is cheaper, but need to manually control, lower efficiency, suitable for some small batch production occasions.

Semi-automatic punching machine

Semi-automatic punching machine in the manual type punching machine based on the addition of electronic control systems. It is characterised by automatic positioning and punching, but also need to manually process the material into the punching machine working area. Semi-automatic punching machines are usually sold at a higher price than manual punching machines, but the production efficiency is greatly improved, while ensuring the quality of the punches.

Fully automatic machines

Fully automatic punching machine usually consists of automatic feeding, punching system, transmission system and electronic control system. It can realize automatic feeding, automatic punching, compared with manual and semi-automatic punching machine, the production efficiency is more efficient. Fully automatic machines are suitable for high volume and high precision punching, and are more expensive than manual and semi-automatic machines.

Multi-head machines

Multi-head machines are usually used in production lines where there is a high demand and frequency of punching. Multiheads usually have several heads that can be used simultaneously to save time and increase productivity. Multiheads are also available in manual, semi-automatic and fully automatic models to suit different production sizes and requirements.

After-sales Service :

1. Training supporting, teach you how to install the machines , how to use the machines and how to make products
2. Engineers supporting

Auto Rotary Steam Gloves Dotting Machine

Value Added Service

Demand communication

Communicate with customers via phone, WeChat, email and other methods.
Determine customer needs through communication, understand the customer’s company, determine the type of need, and recommend product types to customers.

Delivery and service

After delivery, we will provide you with high-quality services to create safe, environmentally friendly, stable and reliable high-quality products. Our goal is to serve our customers, to provide them with pre-sales and after-sales services, and to create quality and caring services for customers.

FAQ

Q: Can you provide technology support?

A: Selection to provide comprehensive technology support, and free technology training.

Q: What if the machines are defected after we get the machines?

A: One year warranty, Life-long free maintenance and 24 hour online consulting, solution will provide within 48 hours.

Q: Why us.?

A: We are the leader with more than 20 years experience in this industry. Our products with more than 30% energy saving.Highest cost effective environmentally. Excellent pre-sale and after-sale services.

Q: Do you accept customize machine?

A: Please communicate with us salesperson at first, we can customize machine on us developing ablity.

Q: What's the payment item?

A: We usuallly do 30% T/T as deposit, 70% balance paymet before shipment. Cash payment, L/C also can accpet on old customer.

Q: Do you have any certificate?

A: We have CE certificate and original certificate if you need.

Q: What's your warrenty?

A: We supply one-year warrenty and full time spare parts supplying after warrenty.

Q: How about the after-sale service?

A: (1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.

Q: How about the spare parts?

A: After we deal down all the things , we will offer you a spare parts list for your reference.

Q: Do you also offer the wrapping film?

A: Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.

Q: If we have very special request for the production line,could you help me to do the design?

A: Experienced mechanical designer customized-design provided.

Q: If we have samples of new products, can you help to analysis and design the machine?

A: Yes, Our technical department can help to analysis, design and test the new products you offered.

Q: Can I visit your factory?

A: Sure, Need more details or videos? Please contact us directly !

Q: How does dot peen marking work?

A: Dot Peen Marking is a direct part marking method where a stylus, or pin, rapidly strikes a material's surface to create a series of dots, forming alphanumeric characters or codes. Widely used in industries, it offers permanent, fast, and efficient marking on materials like metals and plastics.

Q: What is a dot machine?

A: Dot peen marking machines are devices that use pneumatically or electrically driven carbide, tungsten carbide stylus, or pin to create permanent marks on various surfaces.

Q: What is a dot pin marking machine?

A: Dot peen machines work by using a single pin to mark materials with customer-specific information.The result is a specific dot pattern that creates deep characters (serial numbers, batch numbers, date codes, etc.), logos, and codes (Data Matrix).

Q: What can i do if I don't know which one I need?

A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q: How long is your delivery time for Automatic Cotton Dotting Machine?

A: Generally it is 30 days . or it is 60 days , it is according to quantity.

Q: What's the advantage of your products?

A: Competitive prices, fast delivery and high quality.

Q: Are you trading company or manufacturer?

A: We are factory.

We're well-known as one of the leading dotting machine manufacturers and suppliers in China. If you're going to wholesale custom made dotting machine at competitive price, welcome to get more information from our factory.
